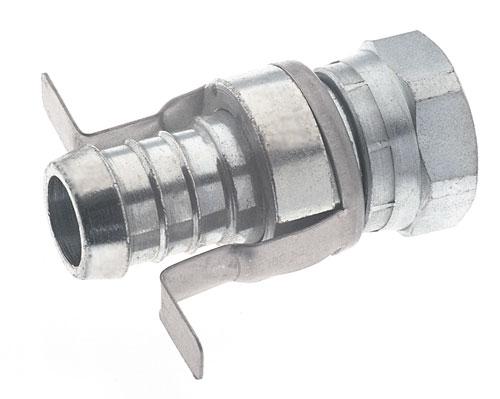

Tri-Lokt Machined Female Hose Swivel Coupling

H22279

Band-It

The BAND-IT exclusive design of the Tri-Lokt Hose Nipple is the answer for heavy duty industrial hose applications.
(click image to enlarge)
Quick Overview

    Application Tools
  • Ultra-Lok
  • Jr. Smooth Id
  • Center Punch
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.
Details

The BAND-IT exclusive design of the Tri-Lokt Hose Nipple is the answer for heavy duty industrial hose applications. The Tri-Lokt Nipple should be used when a positive lock is required between the clamp and the nipple. The locking yoke or tie strip assembly together with the BAND-IT clamp accommodates the various wall thicknesses of different types of hoses.


  • End Barb Provides Excellent Holding Strength.
  • Secure Lock Due To A Unique Yoke Or Tie Strip Assembly Which Is Clamped To The Hose.
  • Low Profile.
  • Ease Of Installation.

  • ProductMaterialShank LengthID/NPSCNo. of Clamps Per NipplePackage QuantityPackage Weight
    InchesmmInchesmmLbs.Kg
    H22279Plated Steel1.19301/212212/Box3.21.4
    H23479Plated Steel1.50383/419212/Box5.62.5

  • Only Stainless Steel Band-It Clamps Should Be Used With Tri-Lokt Hose Nipples.
  • Hose And Nipples Should Never Be Operated In Excess Of The Maximum Working Pressure Established By The Hose Manufacturer.
  • Nut End Has Conical Seat To Seal With A Tri-Lokt Male Nipple Of Comparible Size.
  • Replacement Tri-Lokt Stainless Steel Tie Strip Kits And Yokes Available. Contact Band-It For More Information.
  • Finish May Be Clear Zinc Or Dichromate Zinc Plating On The Carbon Steel Nipple.

  • Recommended Clamp Widths for BAND-IT Hose Nipples
    Hose IDBand Clamp Width
    Inches(mm)Inches(mm)
    1/2 to 5/813 to 163/8 to 1/26.35 pr 12.70
    3/4 to 1 1/219 to 381/2 to 3/412.70 to 19.05
    2 to 651 to 1523/419.05

    For maximum holding power, BAND-IT recommends the ULTRA-LOK Clamping System for use with all hose fittings larger than 2" in diameter.

    Additional Information
    Manufacturer: Band-It
