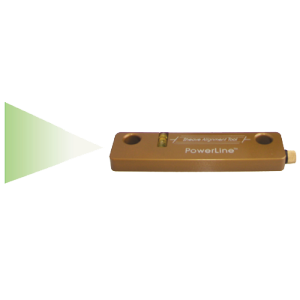

The GreenBrite® magnetic pulley (sheave) alignment laser tool projects a plane of laser light parallel with the faces of drive and driven sheaves (or pulleys). Adjustable targets attach to sheaves, intersect the laser beam and visually show any misalignment. The Retro-Reflective film on the center line of the target reflects the laser beam and "glows" for enhanced visibility and accuracy. The reflective green film shows the laser's alignment line in "Real Time". This is called "Positive Tracking".

(click image to enlarge)

Quick Overview

Laser: 532nm, Class II, <1mw

Vial: 40 Arc Minute

Beam Spread: 60" @ 3'

Line Width: Approx. 1/16" @ 30"

Magnets: Nickel Plated, Rare Earth

Power: 2 AAA Alkaline Batteries (5hrs)

Targets: 3 - Retro-Reflective, Adjustable over 1"

Accuracy: .070" or 7 times more accurate than industry standards

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Decrease Vibration on any Pulley/ Sheave System - minimize belt and motor bearing wear

Compact Size - easy to use on small diameter sheaves

Faster set ups

Decrease bearing wear

Green beam is 400% more visible than red beam laser

Use as a laser level - check the height and flatness of motor and gear box mounting plates

Aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment

Additional Information

Manufacturer: Johnson Level & Tool Co.
