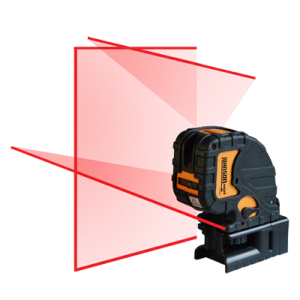

Self Leveling Combination 3 Line or 3 Beam Laser Dot

Model: 40-6683

Johnson Level & Tool Co.

Self Leveling Combination 3 Line or 3 Beam Laser Dot
(click image to enlarge)
Quick Overview
  • Leveling Method: Self-Leveling (Pendulum)

  • Laser Wavelength: 635nm+/- 10nm (Red)

  • Laser Classification: Class llla

  • Maximum Power Output:
  • Accuracy: +/- 1/8"/50 ft. (+/- 1mm/10m)

  • Interior Range: Up to 150 ft. (45m) for lines depending upon light conditions. Up to 200 ft. (60m) for dots depending upon light conditions

  • Self-Leveling Range: +/-3 degrees

  • Power Supply: 3:AA" alkaline batteries (included)

  • Battery Life: Approximately 15 hours continuous use

  • Dimensions: 5.31" x 4.84" x 2.56" (135 x 123 x 65mm)

  • Weight: 1.869 lbs (0.7 Kg)

  • Working Temperature: 14 to 113 degrees F (-10 to 45 degrees C)

  • Center Screw Thread: 5/8" - 11 on base; 1/4" - 20 on laser

  • IP Protection Class: 54

  • Warranty: 3 years with store receipt
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Projects three lines or three dots

  • Locking mechanism protects inner pendulum during transportation

  • Manual mode allows unit to tilt to extreme angles

  • Self-leveling with visible and audible alarms when beyond leveling range

  • Multi-functional magnetic base with rare earth magnets for use on walls, metallic surfaces or tripod
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
