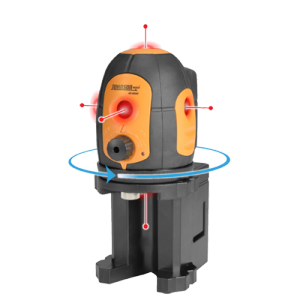

Johnson's self-leveling dot laser level projects a vertical beam straight up and straight down to easily transfer a point from the floor to the ceiling - great for layout and transfer of a canned lighting system in a room - plus will project 3 horizontal beams, 2 from left to right and one straight on to give you a perfect 90-degree angle in a room. All dot laser levels are self-leveling with accuracy of 1/8th of an inch at 50 feet, plus all have locking compensators so the laser level won't shake or be damaged while not in use.

(click image to enlarge)

Quick Overview

Number of Beams: 5

Leveling Method: Self-Leveling (Pendulum)

Laser Wavelength: 650nm +/-10nm (Red)

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/8"/50ft. (+/-2mm/10m)

Interior Range: Up to 200ft. (60m) depending on light conditions

Self-Leveling Range: +/-4.5 degrees

Power Supply: 3 "AA" alkaline batteries (included)

Battery Life: Approximately 20 hours with alkaline batteries

Dimensions: 3.15" x 3.858" x 4.0" (80 x 98 x 101.6mm)

Weight: 1.101lbs. (0.5kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8"-11, 1/4"-20

IP Protection Class: 55

Warranty: 3 Years

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Self-leveling

Projects five self-leveling beams simultaneously

Locking mechanism protects inner pendulum during transportation

Visual and audible alarms when beyond leveling range

Laser can be rotated 360° when attached to magnetic laser mount

Additional Information

Manufacturer: Johnson Level & Tool Co.
