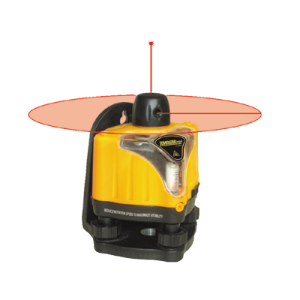

Johnson's Manual-Leveling Rotary Laser Level has accuracy of 1/8" at 30 feet with a variable rotation speed, runs silently and is easy to level using three tuning knobs with three bubble levels. The Rotary Laser Level Kit includes an aluminum elevating tripod (Johnson Model 40-6861), laser glasses and a hardshell carrying case to protect the rotary laser level, this laser level is an excellent value and is a top seller for home and on the construction site.

(click image to enlarge)

Quick Overview

Leveling Method: Manual (Vials)

Laser Wavelength: 650nm +/-10nm

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/8"/30ft. (+/-0.3mm/m)

Interior Range: Up to 200' diameter (60m) depending on light conditions

Exterior Range: N/A

Remote Range: N/A

Slope: N/A

Auto-Leveling Range: N/A

Grade Setting: N/A

Power Supply: 4 "AA" alkaline batteries (included)

Battery Life: Approximately 25 hours continuous use

Dimensions: 4.75" x 4.75" x 6.125" (120 x 120 x 155mm)

Weight: 1.35 lbs. (0.612kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8"-11

Scanning Modes: N/A

Rotation Speeds: 0 - 600 rpm

IP Protection Class: 43

Warranty: 3 Years

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Manual level in horizontal and vertical planes

Simultaneous 90° split beam in vertical mode

Illuminated vials for easy reading in all conditions

Rotation speed from 0 to 600 RPM

Multi-functional adjustable base and mounting bracket

Additional Information

Manufacturer: Johnson Level & Tool Co.
