Self-Leveling Rotary Laser Level (Kit Options)

Model: 40-6515,40-6516,40-6517

Johnson Level & Tool Co.

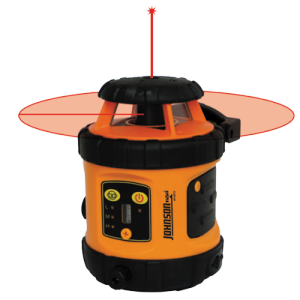

Self-Leveling Rotary Laser Level (Kit Options)
(click image to enlarge)
Quick Overview
  • Leveling Method: Self-Leveling (Pendulum)

  • Laser Wavelength: 635nm +/-10nm

  • Laser Classification: Class IIIa

  • Maximum Power Output: <=5mW

  • Accuracy: +/-1/8"/100ft. (+/-1mm/10m)

  • Interior Range: Up to 800' diameter (240m) with detector

  • Exterior Range: Up to 800' diameter (240m) with detector

  • Remote Range: N/A

  • Slope: N/A

  • Auto-Leveling Range: +/-3 degrees

  • Grade Setting: N/A

  • Power Supply: 4 "AA" alkaline batteries (included)

  • Battery Life: Approximately 20 hours continuous use

  • Dimensions: 4.96" x 6.69" x 6.61" (126 x 170 x 168mm)

  • Weight: 3.3 lbs. (1.5kg)

  • Working Temperature: 14F to 113F (-10C to +45C)

  • Center Screw Thread: 5/8"-11

  • Scanning Modes: N/A

  • Rotation Speeds: 200, 400, 600 rpm

  • IP Protection Class: 54

  • Warranty: 3 Years
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Self-leveling in the horizontal plane

  • Locking mechanism protects inner pendulum during transportation

  • Manual-leveling in the vertical plane with 90° split beam

  • Visual and audible alarms when beyond leveling range

  • Laser rotates at 200, 400, 600 RPM

  • Illuminated vertical vial
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
