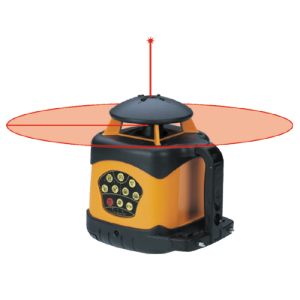

Johnson's 40-6522 Rotary Laser Level with Integral Vertical Mount is great for indoor and outdoor construction laser levels - carpenters, plumbers and electricians LOVE this rotary laser level for the versatility and accurate leveling it provides. Self leveling both horizontally and vertically, with a Vertical mount. Still deciding?

(click image to enlarge)

Quick Overview

Leveling Method: Automatic (Electronic)

Laser Wavelength: 635nm +/-10nm (Red)

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range: Up to 200` diameter (60m) depending on light conditions

Exterior Range: Up to 2000` diameter (600m) with detector

Remote Range: Up to 200` diameter (60m)

Slope: +/-8 degrees

Auto-Leveling Range: +/-5 degrees

Grade Setting: N/A

Power Supply: Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life: Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries

Dimensions: 5.75" x 7.75" x 7.625" (146 x 197 x 194mm)

Weight: 4.4 lbs. (2kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8"-11

Scanning Modes: 0, 30, 60 degrees

Rotation Speeds: 120, 500 rpm

IP Protection Class: 66

Warranty: 3 Years

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Designed for indoor and outdoor applications

Electronically-controlled dual slope feature

Electronic self-leveling horizontally and vertically

Laser beam modes include dot, two adjustable line lengths and two rotational speeds

Two rotational speeds: 120 and 500 RPM

Visual and audible alarms when beyond leveling range

Height of Instrument/Tilt alarm function ensures product accuracy

Additional Information

Manufacturer: Johnson Level & Tool Co.
