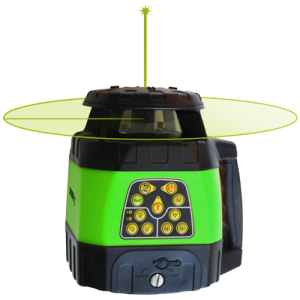

Johnson's 40-6544 Electronic Self-Leveling Horizontal & Vertical Rotary Laser with GreenBrite Technology is superior for indoor construction laser levels - construction contractors, contractors, finish carpenters and builders LOVE this rotary laser level for the visibility and accurate leveling it provides. Electronic self-leveling both horizontally and vertically, with the Green Laser Beam 400% more visible than red beams this makes leveling tasks fast and accurate. Still deciding?

(click image to enlarge)

Quick Overview

Leveling Method: Automatic (Electronic)

Laser Wavelength: 532nm +/-10nm (Green)

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/8"/100ft. (+/-1.0mm/10m)

Interior Range: Up to 400ft. diameter (120m) depending upon light conditions

Exterior Range: Up to 1,200ft. diameter (400m) with detector (not included)

Remote Range: Up to 200ft. diameter (60m)

Slope: +/-5 degrees

Auto-Leveling Range: +/-5 degrees

Grade Setting: N/A

Power Supply: NiMH rechargeable battery pack or 6V adapter (included)

Battery Life: Approximately 24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries (not included)

Dimensions: 8.62" x 6.29" x 7.95" (219 x 160 x 202mm)

Weight: 4.4 lbs. (2kg)

Working Temperature: +32°F to +104°F (0°C to 40°C)

Center Screw Thread: 5/8"-11

Scanning Modes: 0°, 30°, 60°

Rotation Speeds: 200 and 500 rpm

IP Protection Class: 54

Warranty: 3 years with store receipt

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Green Beam is 400% more visible than red beam

Electronically-controlled dual slope feature

Electronic self-leveling horizontally and vertically

Laser beam modes include dot, two adjustable line lengths and two rotation speeds

Two rotational speeds: 200 and 500 RPM

Visual and audible alarms when beyond leveling range

Height of instrument/Tilt alarm function ensures product accuracy

Model 40-6544 includes: Laser, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), 6.4V battery adapter, remote control with 9V battery, ceiling mount, tinted glasses, target, instruction manual with warranty card and hard-shell carrying case

Additional Information

Manufacturer: Johnson Level & Tool Co.
