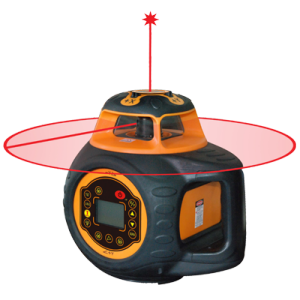

Electronic Self-Leveling Dual Grade Horizontal & Vertical Rotary Laser Kit

Model: 40-6582

Johnson Level & Tool Co.

Electronic Self-Leveling Dual Grade Horizontal & Vertical Rotary Laser Kit
(click image to enlarge)
Quick Overview
  • Leveling Method: Automatic (Electronic)

  • Laser Wavelength: 635nm±10nm (Red)

  • Laser Classification: Class IIIa

  • Maximum Power Output: =5mw

  • Accuracy: ±1/16"/100 ft. (±1.5mm/30m)

  • Interior Range: Up to 200 ft. (60m) diameter depending upon light conditions

  • Exterior Range: Up to 2000 ft. (600m) diameter with detector

  • Remote Range: Up to 200 ft. (60m)

  • Auto-Leveling Range: ±8°

  • Grade Setting: X-Axis -10% - +10%; Y-Axis -10% - +10%

  • Power Supply: Li-ion rechargeable battery pack or Li-ion battery adapter (included), 3 "D" alkaline batteries

  • Battery Life: Approximately 40 hours with rechargeable battery pack; 100 hours with 3 "D" alkaline batteries

  • Dimensions: 9.25" x 7.08" x 9.76" (235 x 180 x 248mm)

  • Weight: 7.275 lbs. (3.3Kg)

  • Working Temperature: 14°F to 113°F (-10°C to 45°C)

  • Center Screw Thread: 5/8" – 11

  • Rotation Speeds: 300, 600, 1100 RPM

  • IP Protection Class: 66

  • Warranty: 3 years with store receipt
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Laser

  • Li-ion rechargeable battery pack

  • Alkaline battery compartment (batteries not included)

  • Li-ion battery adapter

  • Remote control with 2 "AA" batteries

  • Detector with 9V battery and clamp

  • Sighting scope

  • Vertical bracket

  • Fine adjustment plate

  • Instruction manual with warranty card

  • Hard-shell carrying case

  • Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis

  • Large ±8° electronic self level range.  When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate

  • Height of Instrument/Tilt alarm function ensures product accuracy

  • Operates with radio frequency remote control

  • LCD display with backlight illumination

  • Manual mode allows unit to tilt to extreme angles

  • Adjustable rotation speeds of 300, 600 and 1100 RPM
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
