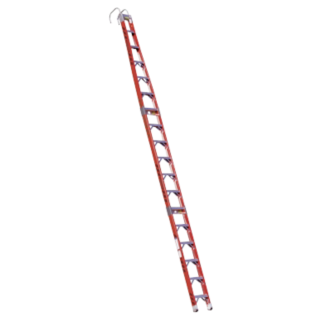

The TPF00-1 ladders are posting ladders with a tapered design of the rails and 1" diameter solid aluminum hooks with aluminum rail shields at the top of the ladders. The large 9 3/4" hook opening allows for easy attachment on the job. Center anchor points distribute the load to each rail, and fall protection tie-offs are located every 5 to 6' along the length of the ladder. The 3" slip-resistant TRACTION-TRED steps are double riveted and braced on the front and back. The TPF00-1 series has a duty rating of 300 pounds.

(click image to enlarge)

Quick Overview

Features include:

1" diameter solid aluminum hook with aluminum rail shield (large 9-3/4" hook opening allows for easy attachment)
3" slip resistant Traction-Tred steps are double riveted and braced front and back
Center anchor points distribute force to each rail. Fall protection tie-offs located every 5' to 6' along the ladder
Glas*Mark violator stripes for added visibility
Rounded aluminum hoop shoe with ribbed rubber pad provides solid footing

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-5/16"

Flange Dimension: 1-3/16"

Rung Dimension: 2-7/8"

Base Width: 14-5/8"

Specifications

Size: 14'

Reach Height: 15'

Load Capacity: 300 lbs.

Type: Type IA Duty Rating

Performance Rating:4 Star

Material: Fiberglass

Rung Type: Other

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 6

Approx. Shipping Wt. Lbs.: 37

Additional TPF00-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
TPF14-1	14'	15'	6	37
TPF16-1	16'	17'	6.8	42
TPF18-1	18'	19'	7.6	48
TPF20-1	20'	21'	8.4	57

Additional Information

Manufacturer: Werner Co.
