Meter channels: 0.6% sloped channels in meter lengths and 30 depths which connect to create 30 meter (98’-5”) continuously sloping run. Neutral channels available in 4 depths. Can be used to create non-sloped runs, or inserted in sloped runs to increase length.

Closing/4” inlet/outlet cap: Fits all channels. Manufactured from gray ABS to complement edge rail. Guides aid cutting to correct height. 4” Bell end connection to Schedule 40 pipe. Seal using PVC-ABS cement. Note: For depth 1-10 channels ACO recommends removal of bell end to ensure adequate pavement material coverage.

CK900 catch basin: In-line catch basin with 4” and 6” drill-outs for pipe connection. Available with plastic trash bucket. Options include in-line or side foul air trap. Any channel can be connected into the catch basin by removing the end wall to the correct height. Drill-outs guide connection to channels 5, 10, 15, 20, 25 and 30.

6” Sch. 40 inlet/outlet caps: 6” Schedule 40 plain end pipe, polypropylene oval to round adapter cast into polymer concrete end cap, available in 2 heights. Solvent weld to coupler. Note: These end caps cannot be cut to height, and fit only at positions shown in layout diagram.

Half meter channels: Neutral channels in 4 depths to supplement meter channels. Side knockout and profiling enable side junction to be created.

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (713) 462-5470
Email: Sales@KrisCon.com

Can't find what you want? Give us a call and we can help you find it.

Details

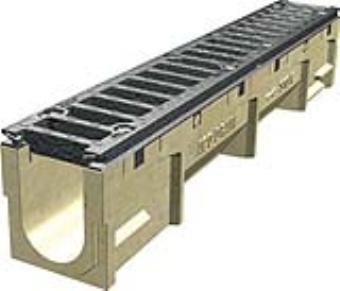

ChemDrain CK100S
